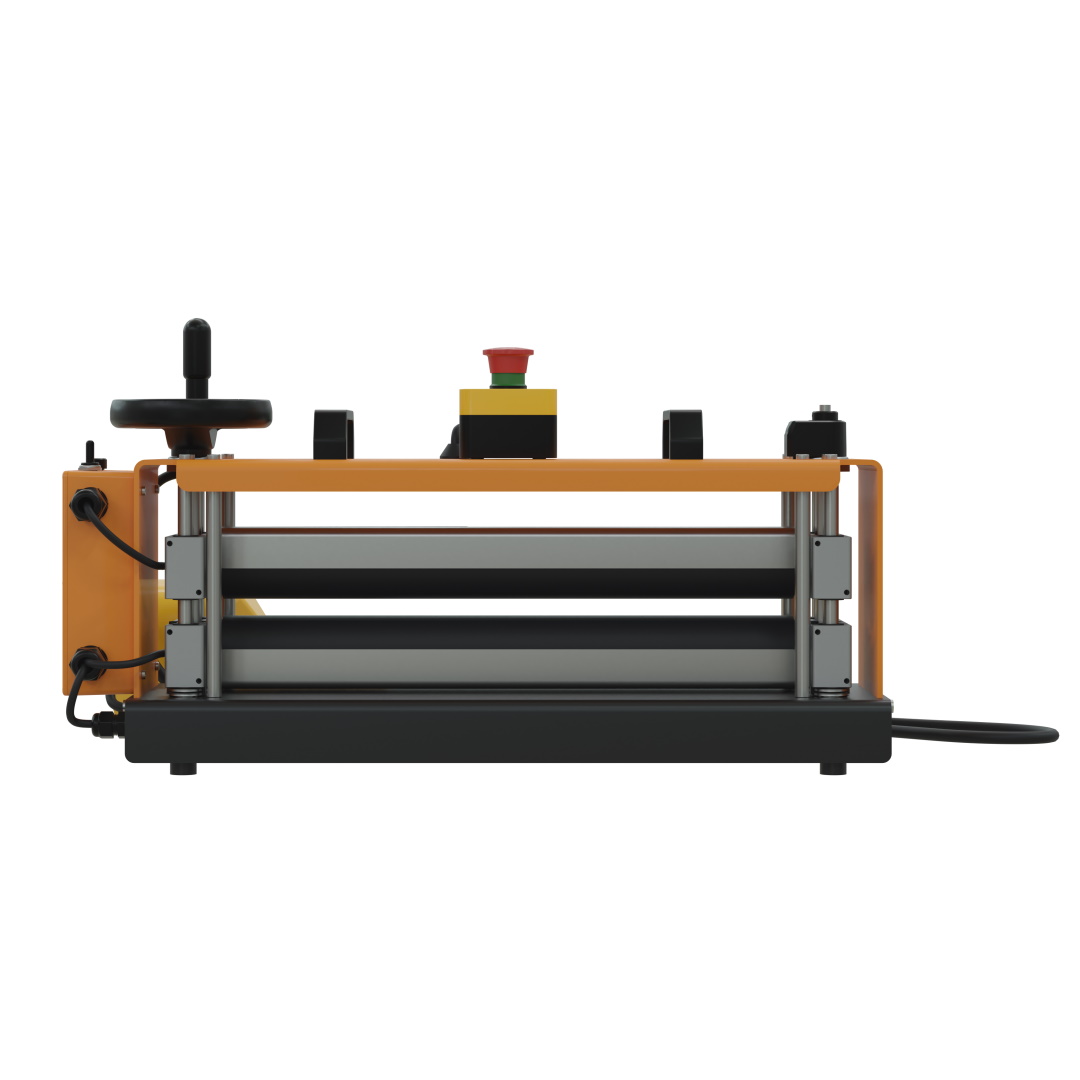

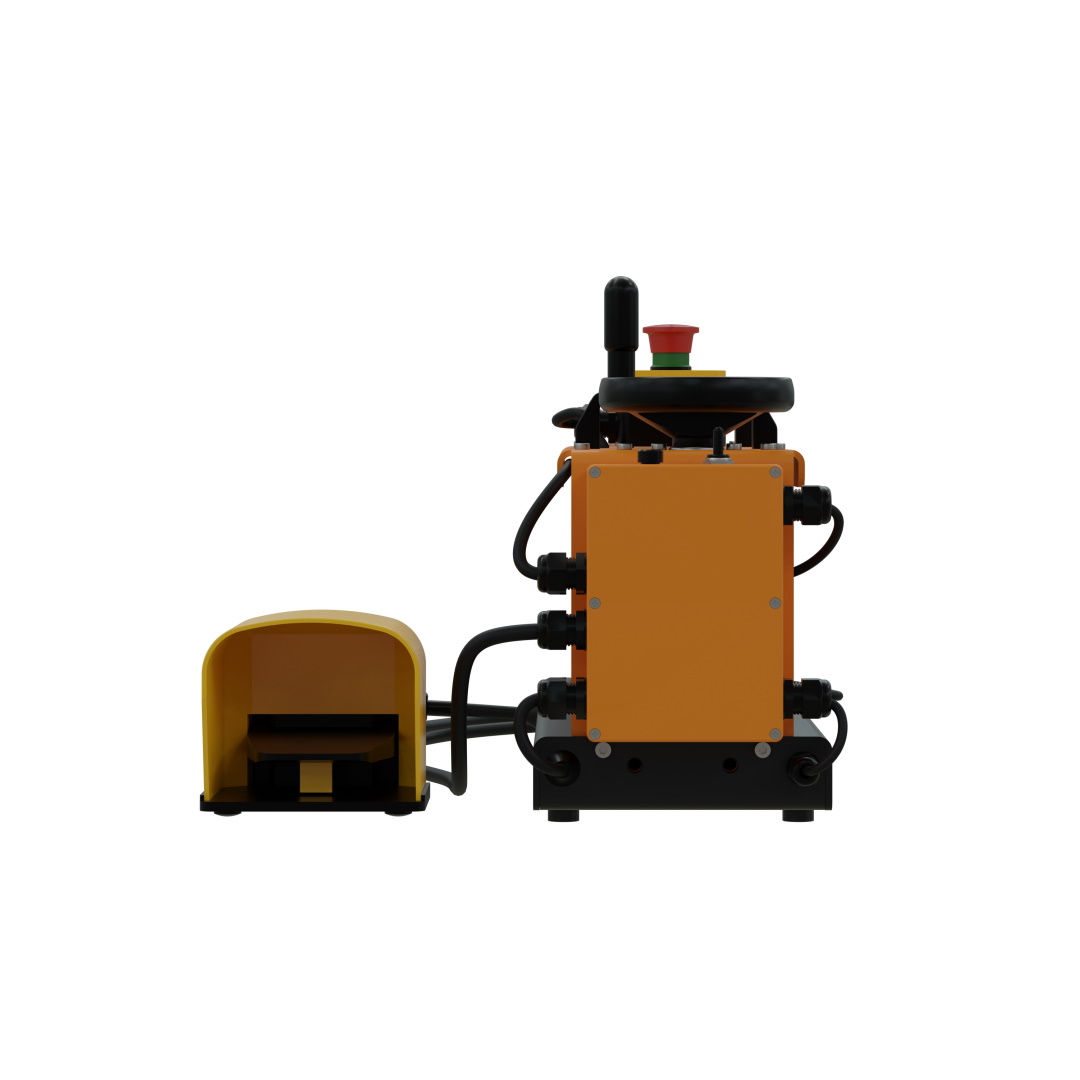

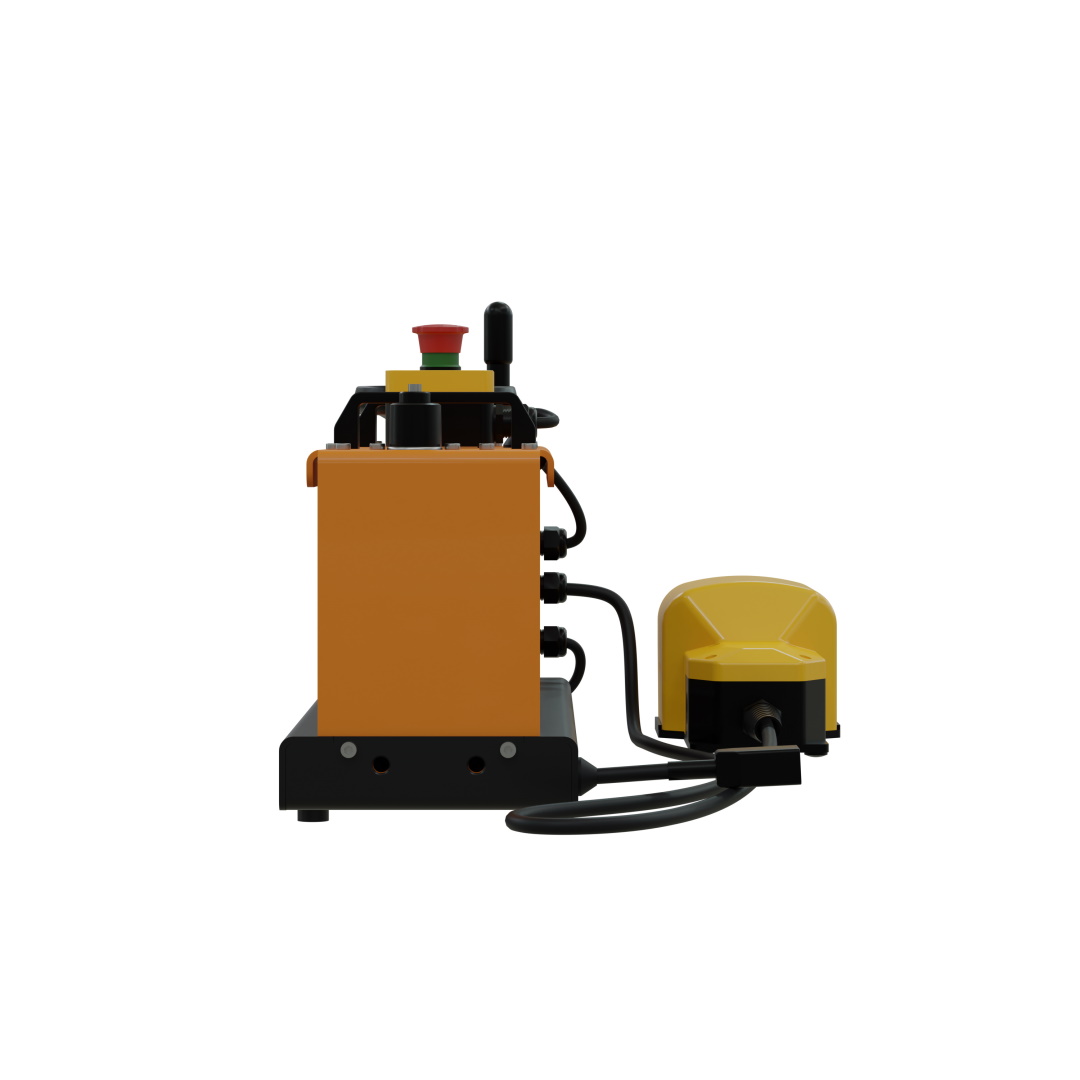

E-ROLLER 450 Impregnation Unit
- E-ROLLER is an electrical impregnation unit for liners.
- Machine can be easily fixed on van’s or trailer’s all kinds of work tables.
- Due to its light weight and quick release, E-ROLLER has easy movement at the worksite.
- Adjustable roller gap with counter reading and 2 powered brushless rollers/motors with grip coating guarantee right thickness all over impregnated liner.
- E-ROLLER is available in 2 sizes:
- E-ROLLER 450: can be used up to DN150 liners.
- E-ROLLER 600: can be used up to DN300 liners.
Description
| Specification | Details |
|---|---|
| Input | 100 – 240VAC / 50 – 60Hz / 2.1A |
| Adjustable Speed Control | Yes |
| Direction Switch | Yes |
| Rollers | 2 powered brushless rollers/motors with grip coating |
| Foot Switch | Included |
| Roller Gap Adjustment | With counter reading |
| Mounting | Quick release table fixing for easy movement on the work site |
| Roller Safety Limit | Stops if pressure is too high |
| Safety Covers | Yes, on both rollers |
| Emergency Stop | Yes |
| Carrying Handles | Yes |
| Weight (Unit 450) | 19.4 kg |
| Dimensions (Unit 450) | 650 x 200 x 360 mm |
| Capacity (Unit 450) | Max. DN150 liner |
Shipping & Delivery
Related products
E-ROLLER 600 Impregnation Unit
- E-ROLLER is an electrical impregnation unit for liners.
- Machine can be easily fixed on van’s or trailer’s all kinds of work tables.
- Due to its light weight and quick release, E-ROLLER has easy movement at the worksite.
- Adjustable roller gap with counter reading and 2 powered brushless rollers/motors with grip coating guarantee right thickness all over impregnated liner.
- E-ROLLER is available in 2 sizes:
- E-ROLLER 450: can be used up to DN150 liners.
- E-ROLLER 600: can be used up to DN300 liners.
Flexi-Cutter
Flexi Cutter is a capable, manually controlled cutter conjugation. It can be used in pipes from DN 80–DN 200 mm, navigating bends up to 90 degrees and clamping in the tube for precise milling with a swivel joint.
Features:
- Pneumatic drive with air motor
- Stainless steel construction for high durability
- Ability to mount a camera directly at the cutting head for real-time visibility
- Supplied with 20 meter air supply hose
- Ideal for cutting out lateral connections after new drain lining installation
- Suitable for pipe sizes: 80mm – 150mm
Included in Kit:
- Stainless steel cutter with pneumatic motor
- 20 meter supply hose
- Camera mounted at cutting head
- Transport box with lid
- Control grip and air gun with 0.5 meter hose
- Material box with wheels, tools, and accessories
