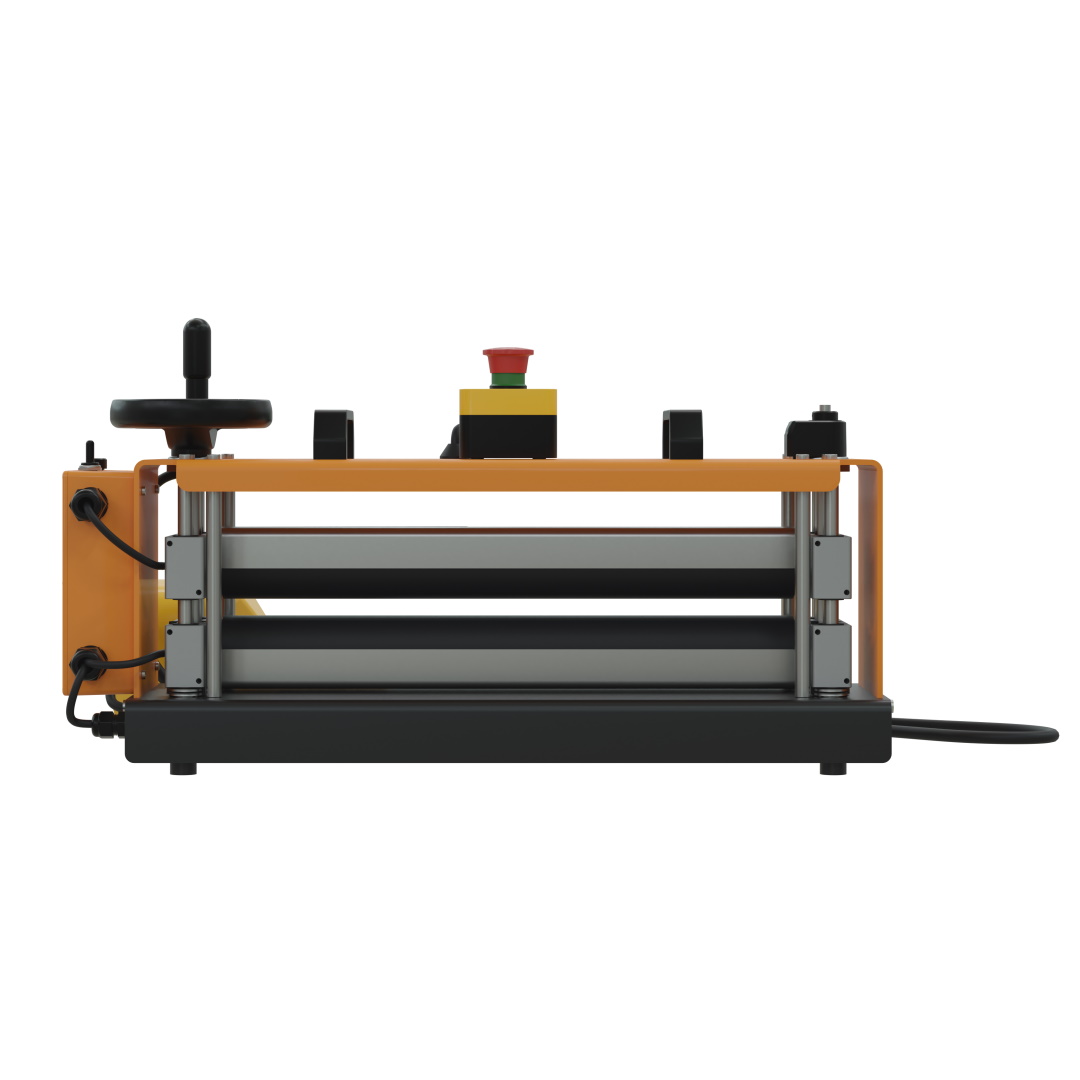

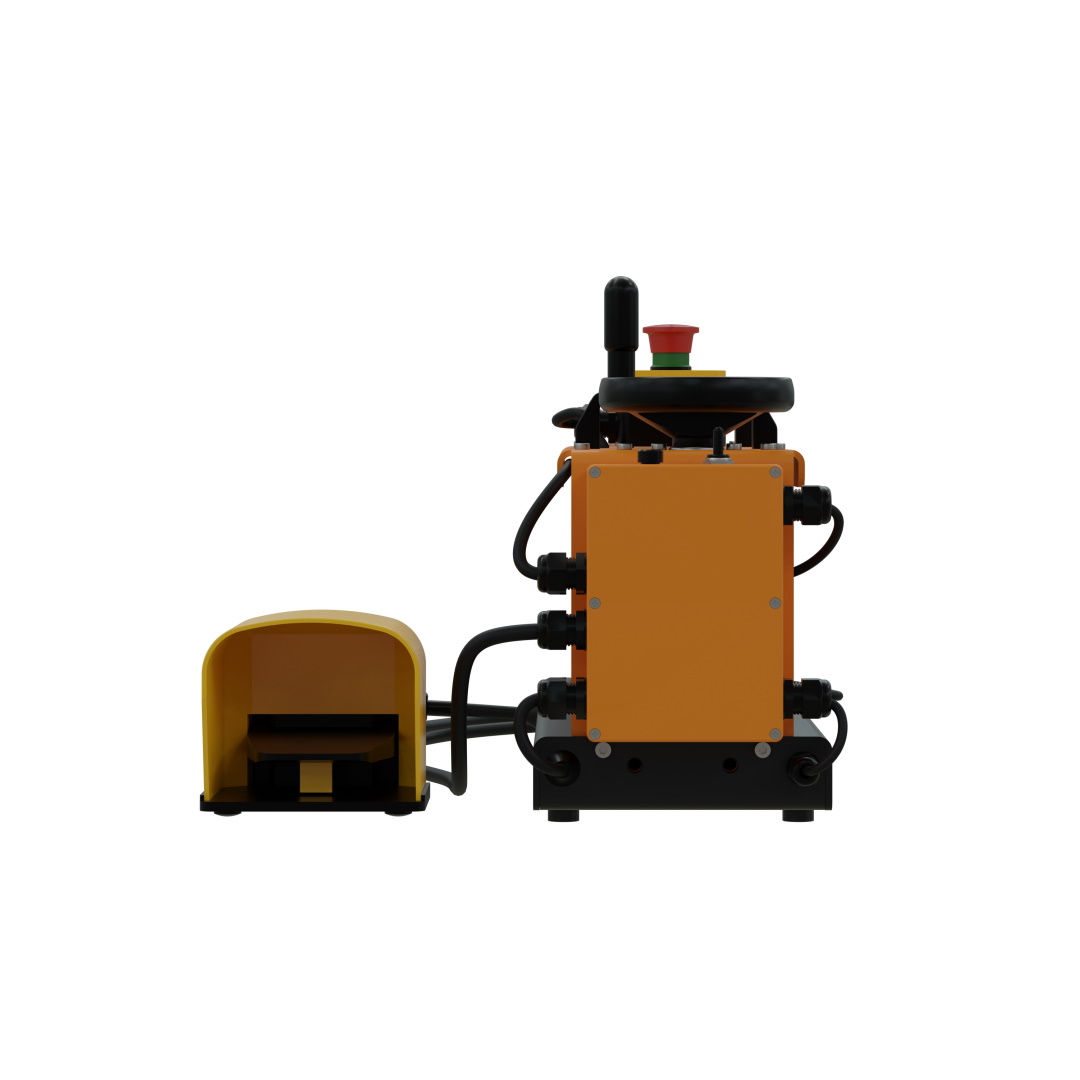

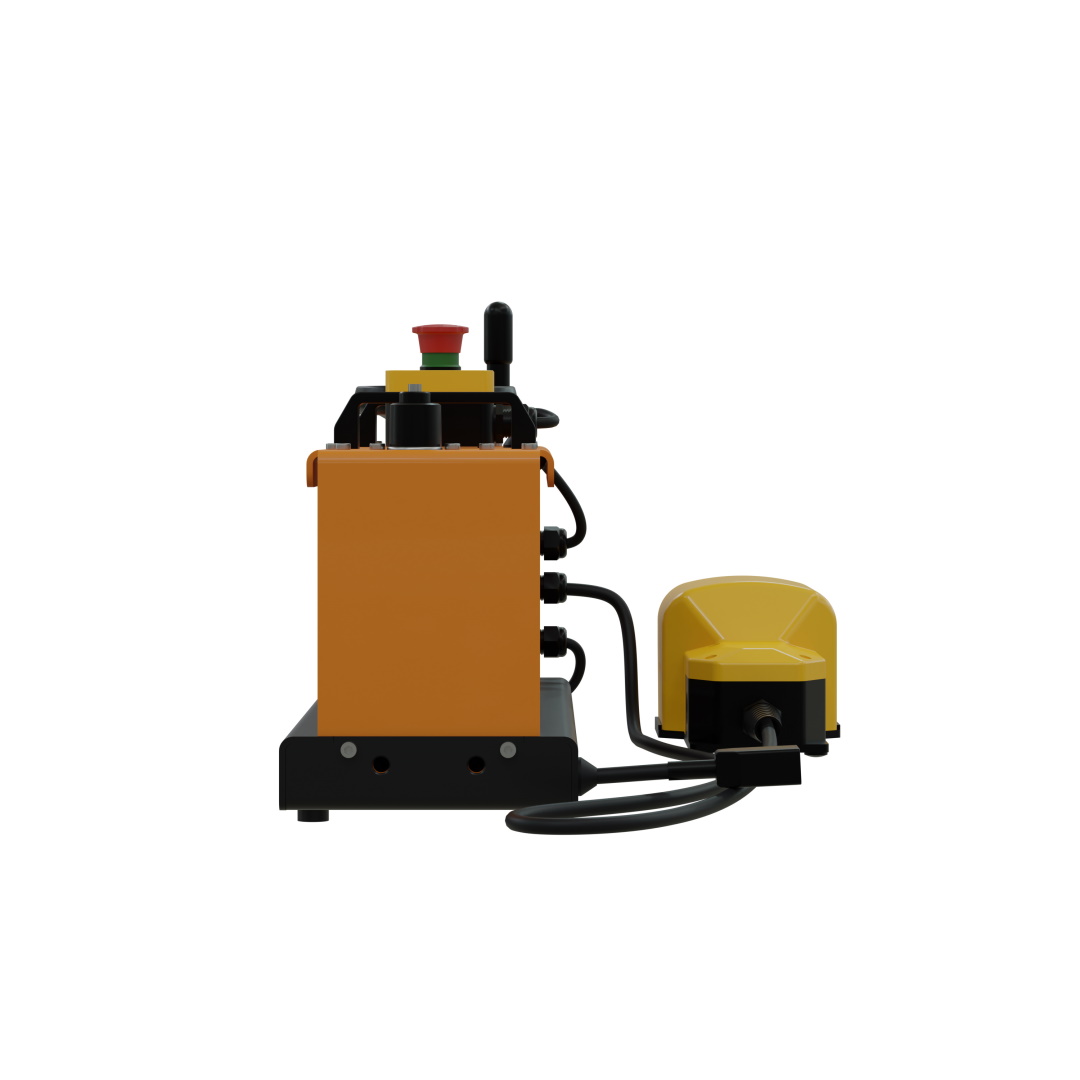

E-ROLLER 450 Impregnation Unit
- E-ROLLER is an electrical impregnation unit for liners.
- Machine can be easily fixed on van’s or trailer’s all kinds of work tables.
- Due to its light weight and quick release, E-ROLLER has easy movement at the worksite.
- Adjustable roller gap with counter reading and 2 powered brushless rollers/motors with grip coating guarantee right thickness all over impregnated liner.
- E-ROLLER is available in 2 sizes:
- E-ROLLER 450: can be used up to DN150 liners.
- E-ROLLER 600: can be used up to DN300 liners.
Description
| Specification | Details |
|---|---|
| Input | 100 – 240VAC / 50 – 60Hz / 2.1A |
| Adjustable Speed Control | Yes |
| Direction Switch | Yes |
| Rollers | 2 powered brushless rollers/motors with grip coating |
| Foot Switch | Included |
| Roller Gap Adjustment | With counter reading |
| Mounting | Quick release table fixing for easy movement on the work site |
| Roller Safety Limit | Stops if pressure is too high |
| Safety Covers | Yes, on both rollers |
| Emergency Stop | Yes |
| Carrying Handles | Yes |
| Weight (Unit 450) | 19.4 kg |
| Dimensions (Unit 450) | 650 x 200 x 360 mm |
| Capacity (Unit 450) | Max. DN150 liner |
Shipping & Delivery
Related products
Fixaline E-Roller Series Modular Roller Table System
- E-ROLLER series comprises electrical impregnation units for liners. E-ROLLERS are available in 2 sizes: E-ROLLER 450 and 600.
- The E-ROLLER machines can be attached to all kinds of work tables with their quick release system.
- The series also includes the ROLLER TABLE MODULE SYSTEM specially designed for the FIXALINE E-ROLLER machines. The modular system can be composed to fit all kinds of needs.
- The E-ROLLER system makes handling and impregnating liners easy and convenient.
