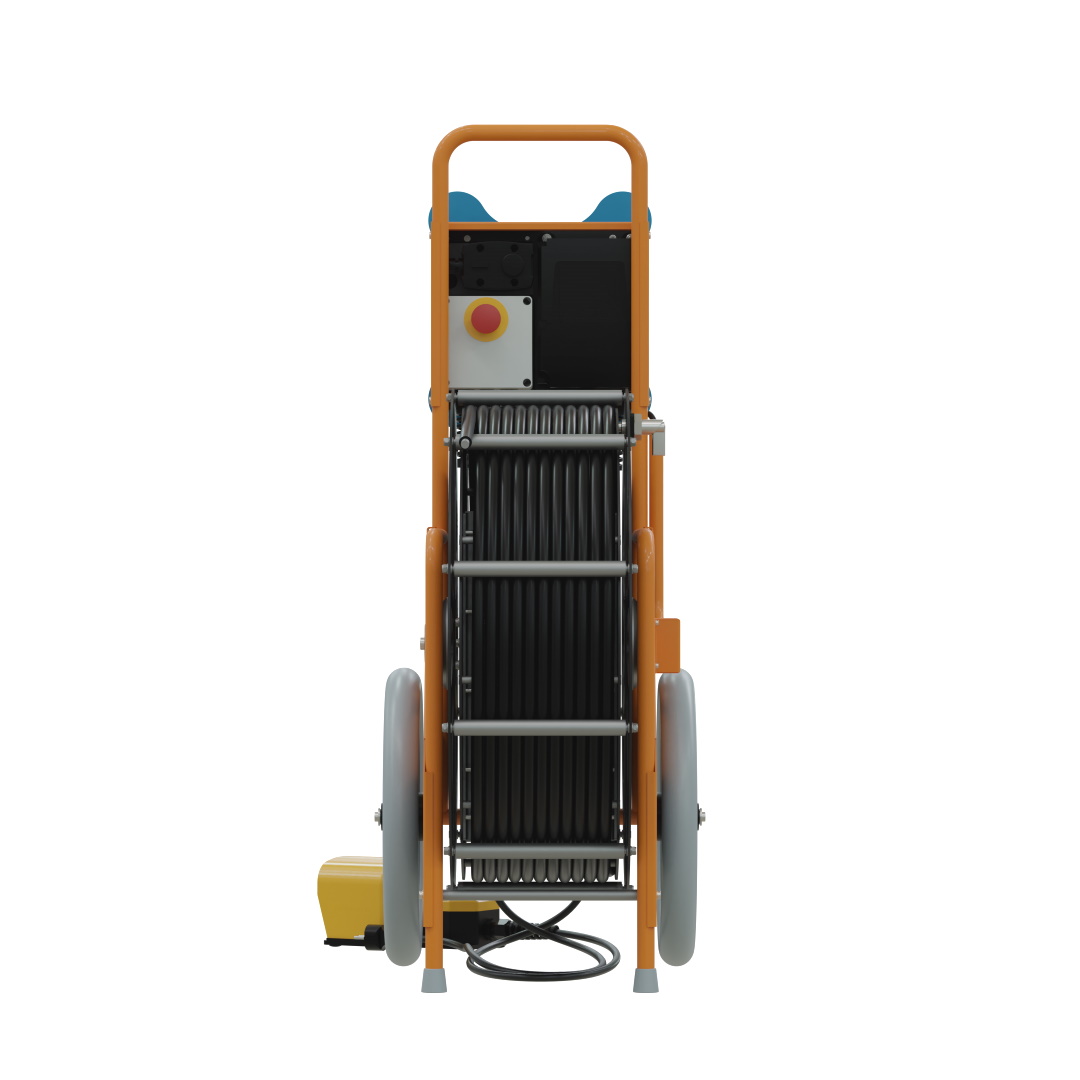

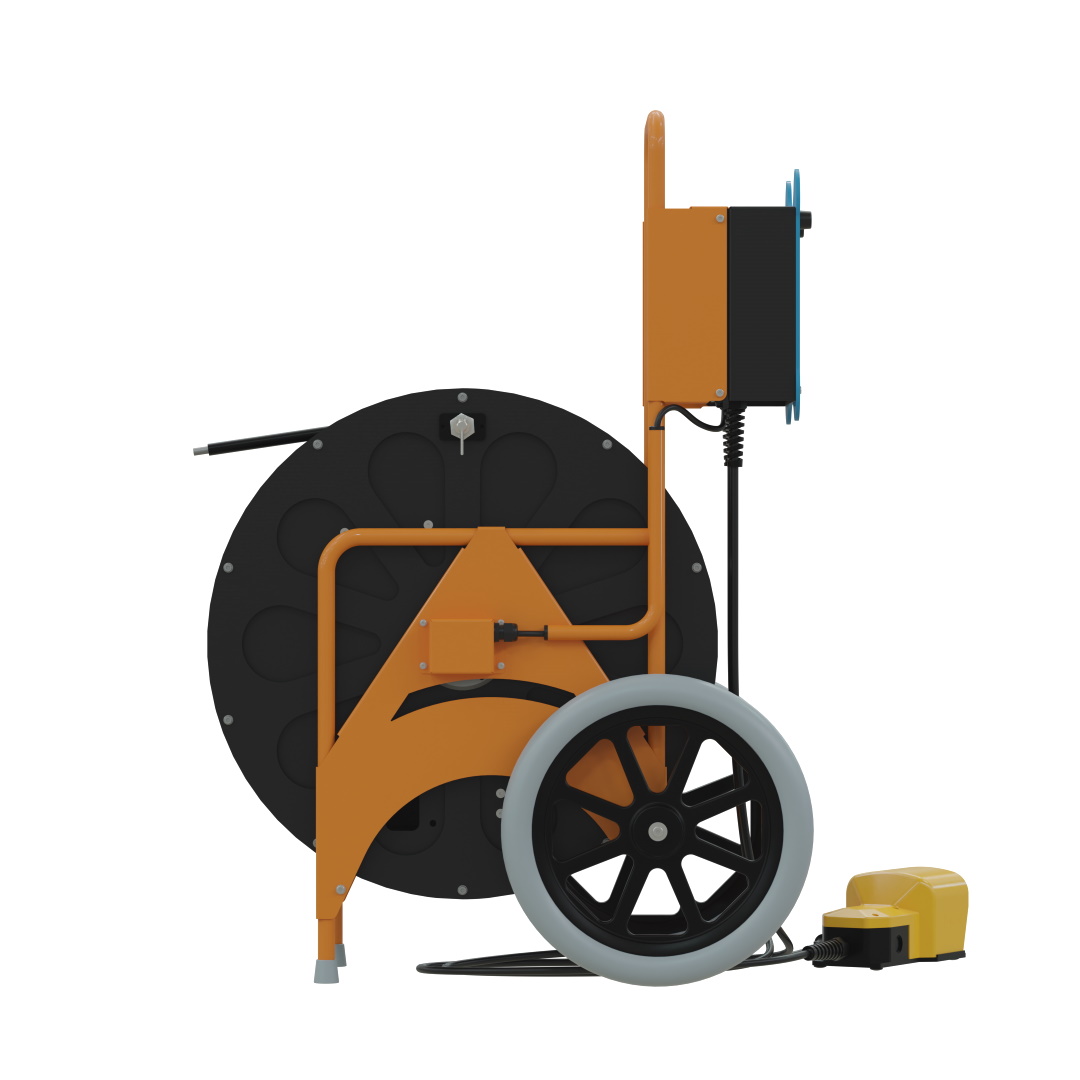

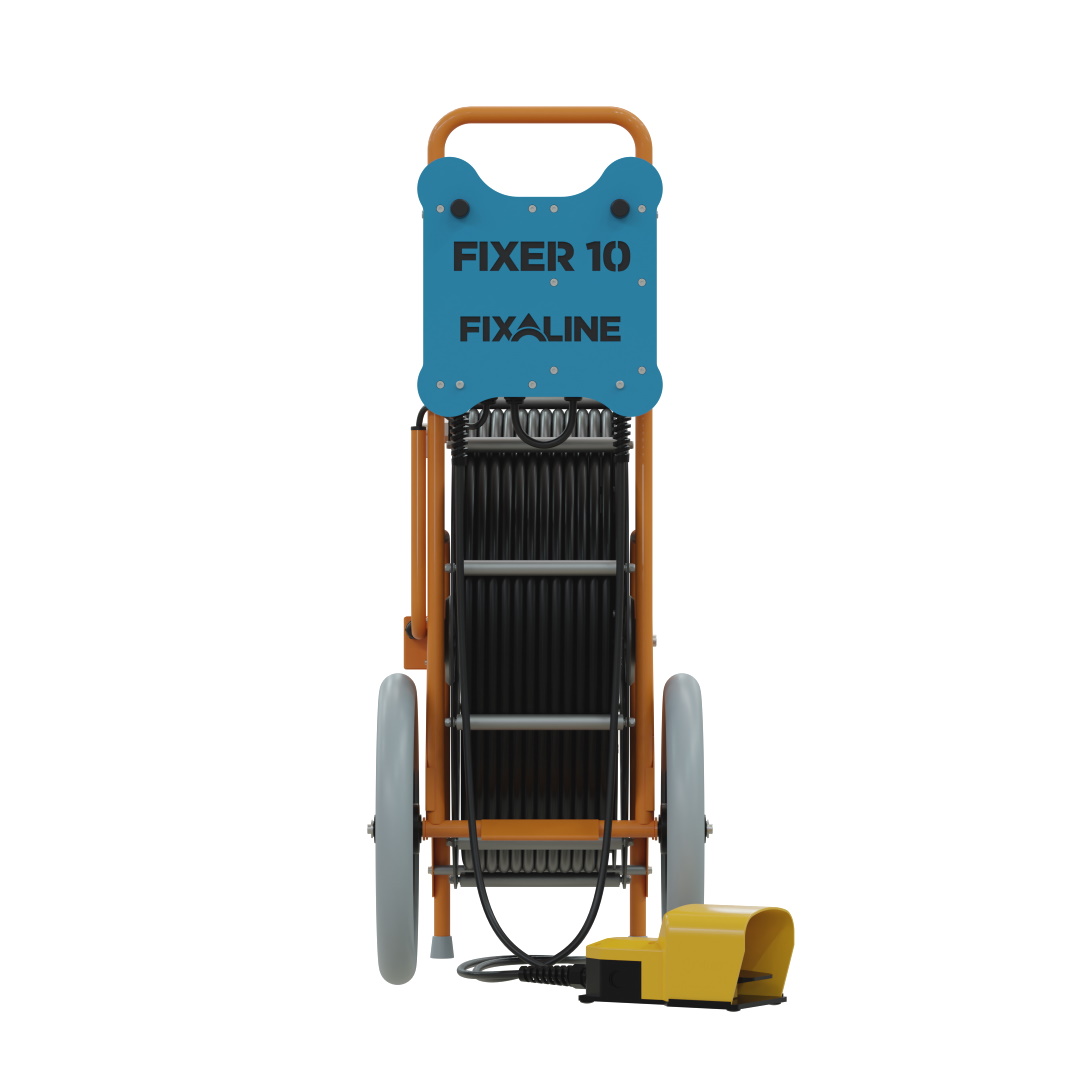

Fixaline FIXER 10
- FIXER 10 is a high-speed pipe cleaning machine.
- Unit can be used for pipe cleaning, grinding, drilling and coating.
- Big puncture-proof wheels make FIXER 10 easily movable in every environment, even in stairs.
- Electrical safety clutch protects operator, machine, shaft and rotating tool.
- FIXER 10 is more powerful, faster, lighter and safer than other similar products on market.
Description
| Specification | Details |
|---|---|
| Size (cm / inches) | 120 x 45 x 80 cm / 47.24 x 17.72 x 31.50 in |
| Weight (kg / lb) | Without shaft: 42.6 kg / 93.9 lb With shaft: 56 kg / 123.5 lb |
| Shaft Ø (mm / inches) | Ø10 / 0.39 Flexible Shaft with Outer Casing |
| Shaft Length (m / feet) | 23.5 / 77.1 |
| Rotating max. speed (rpm) | 2250 |
| Voltage and Power Rating (V/kW) | 240 V / 1.1 kW or 120 V / 1.1 kW |
| Input Power | Electric, 1-phase, Input 240VAC / 50 / 12A or Electric, 1-phase, Input 120VAC / 50 / 23A |
| IP Class | 54 |
| Diameter (mm / inches) | DN50–200 / 2–8 |
