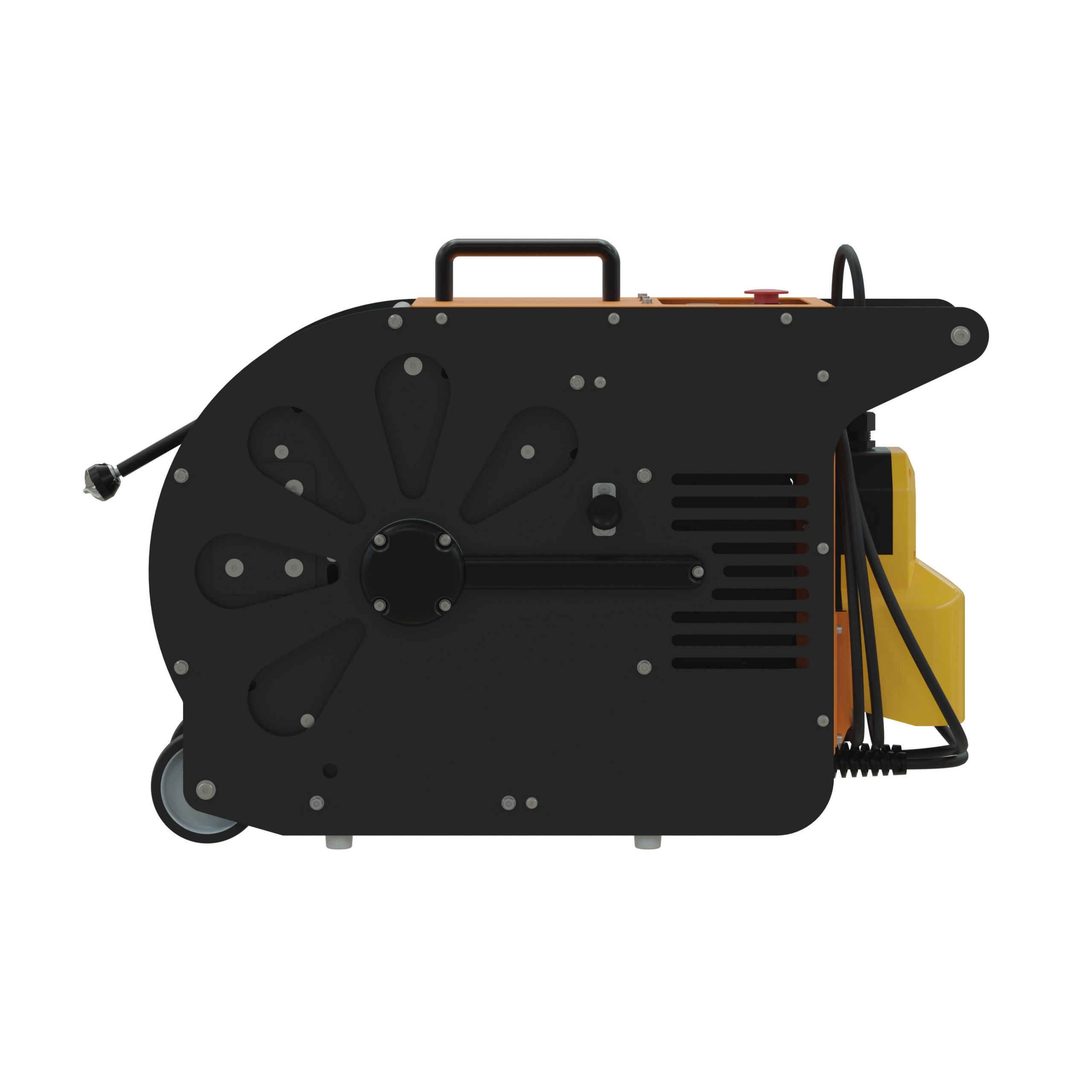

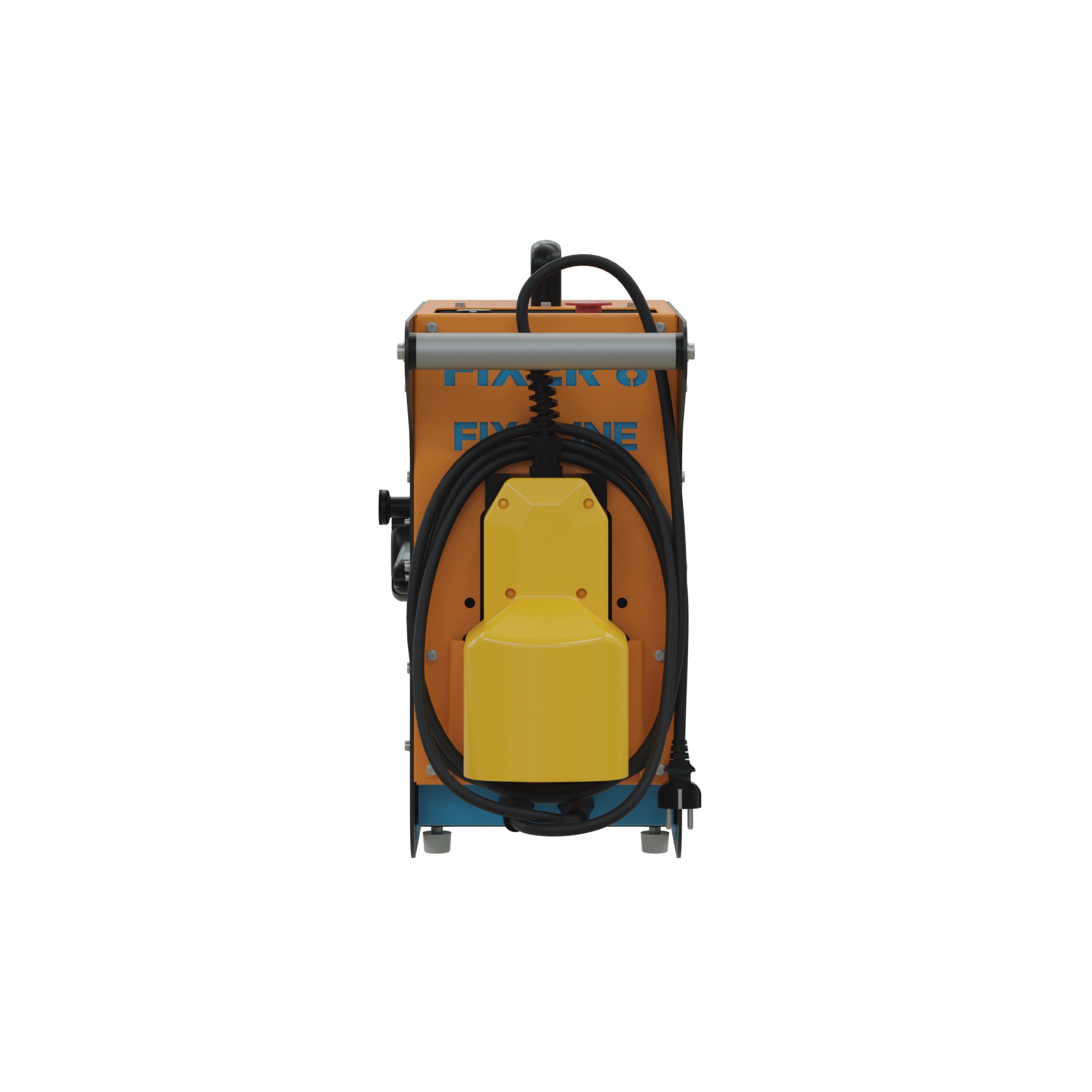

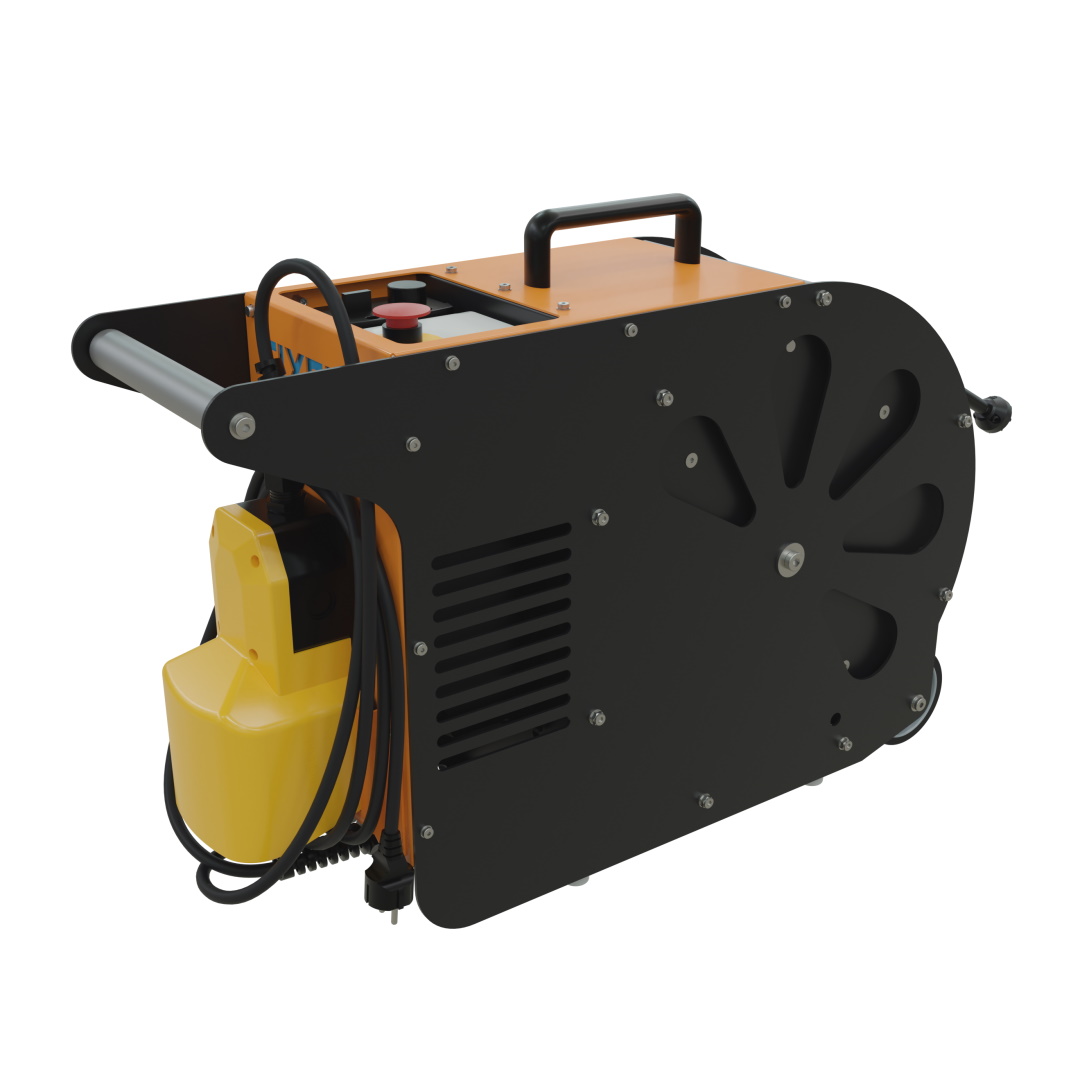

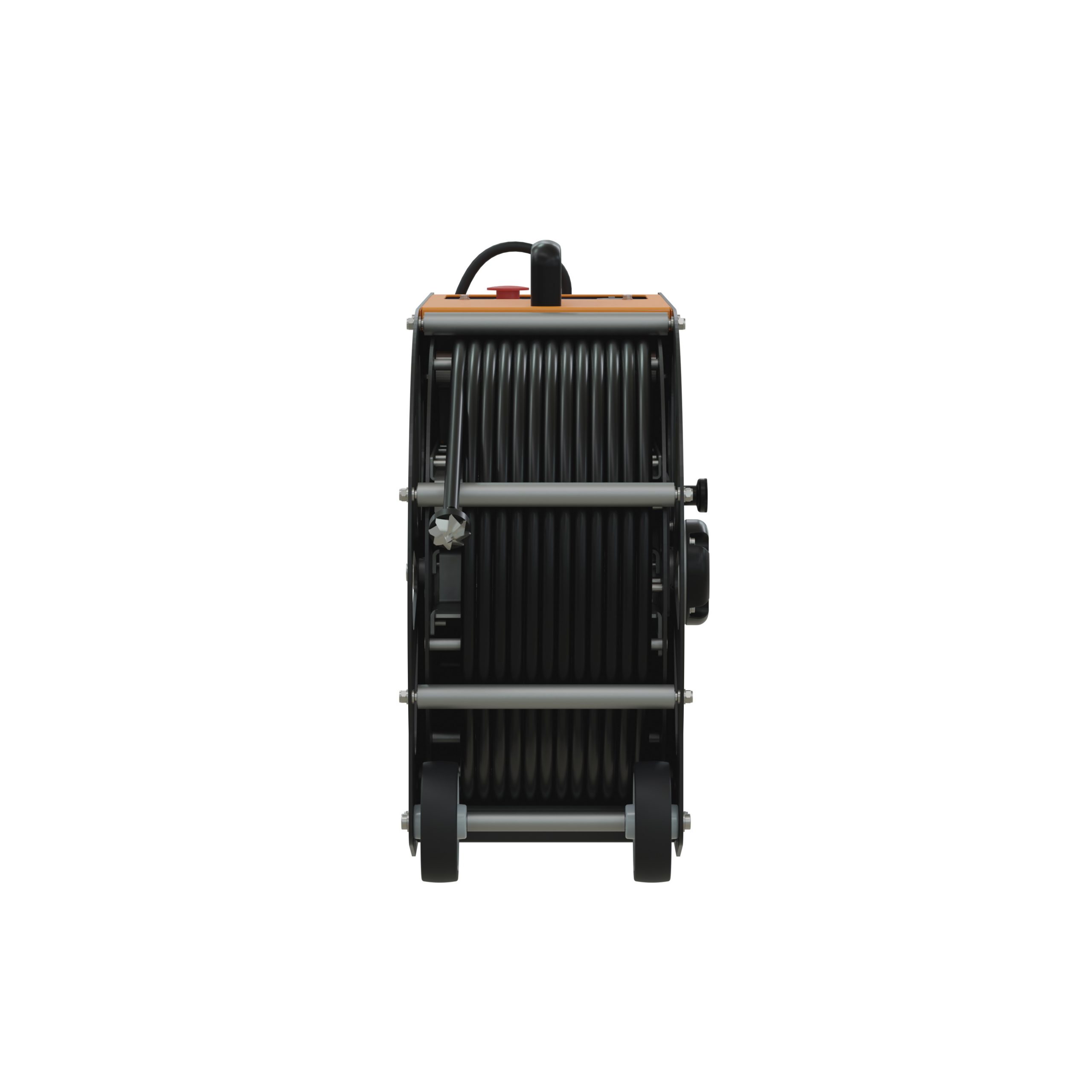

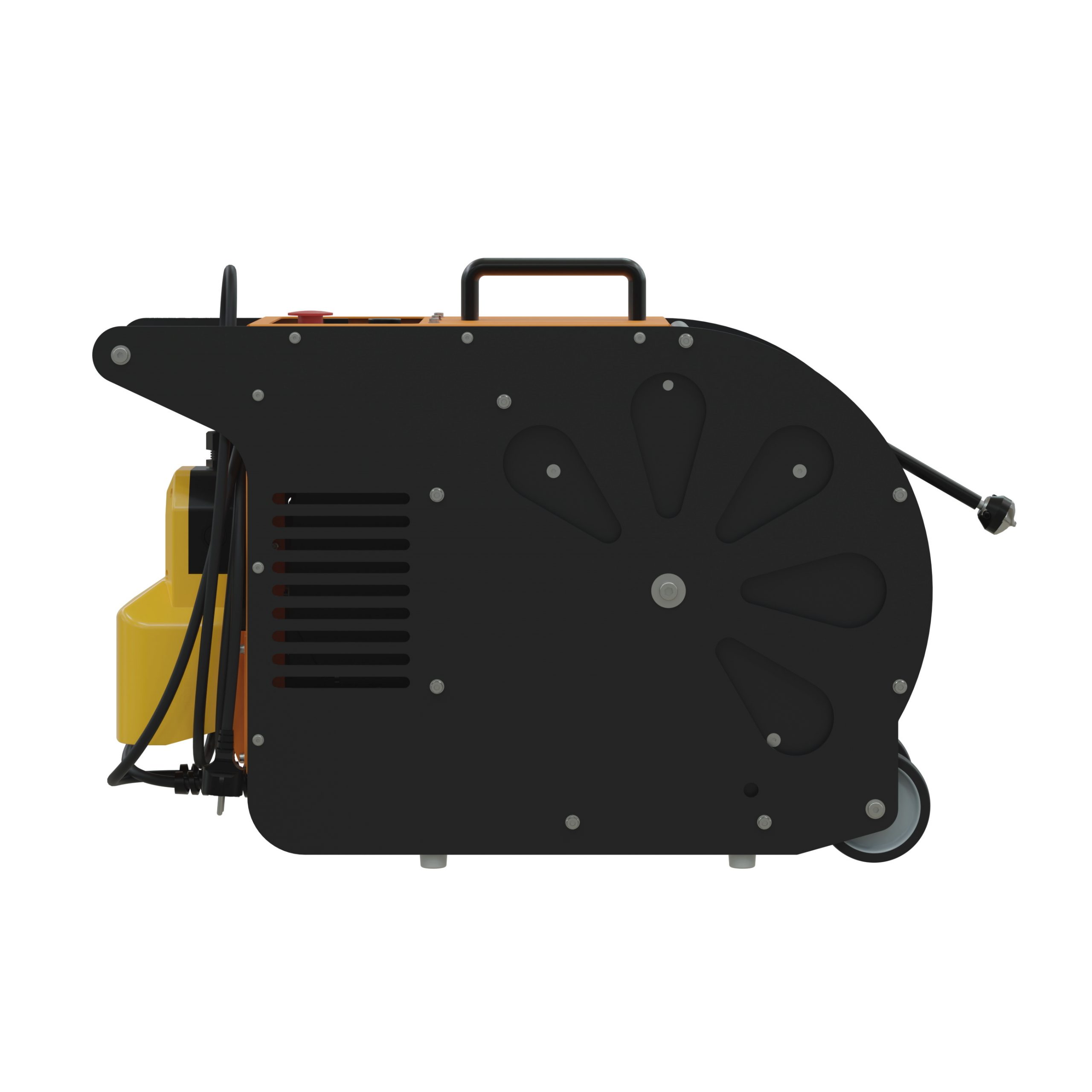

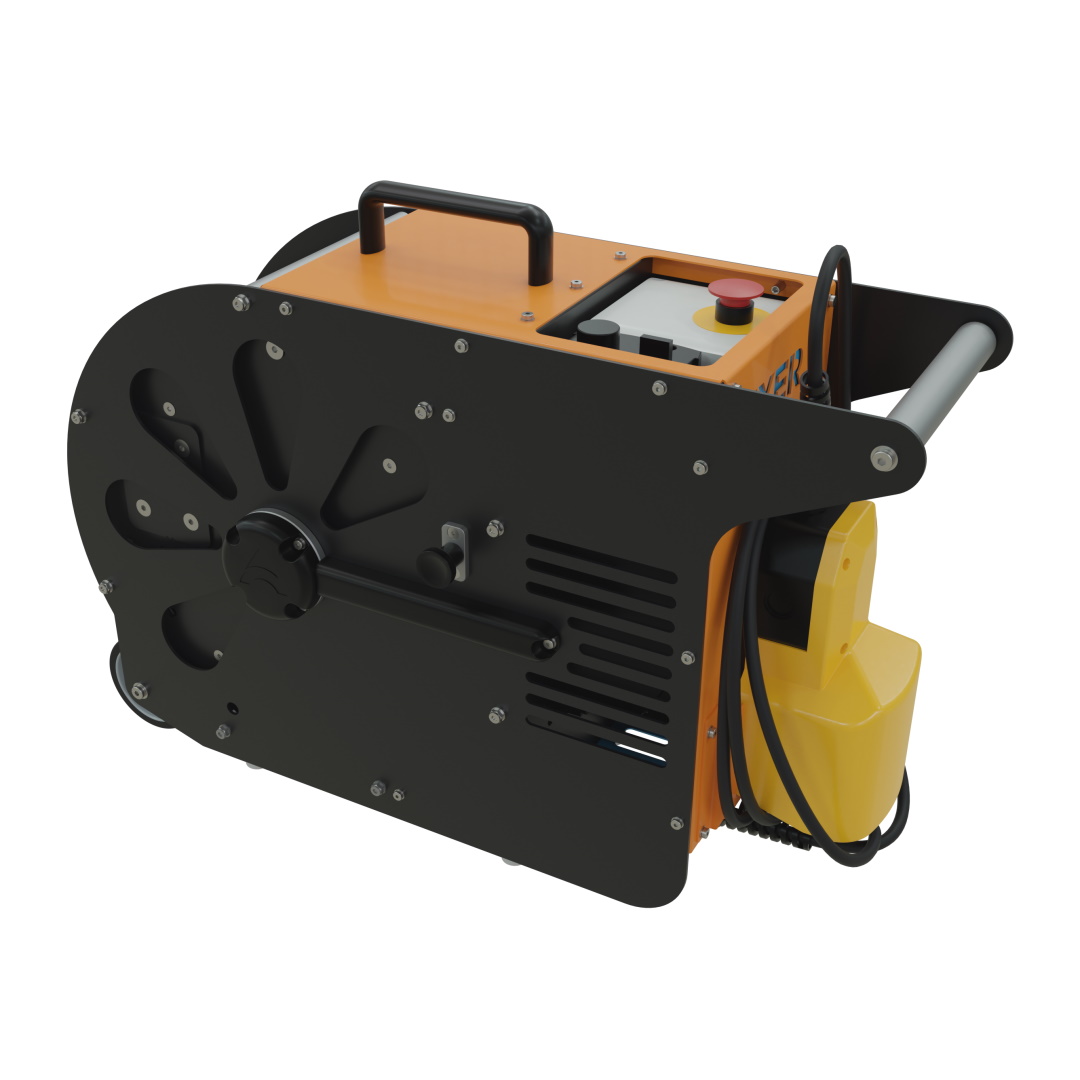

Fixaline FIXER 8
- FIXER 8 is a high-speed pipe cleaning machine. Unit can be used for pipe cleaning, grinding, drilling and coating.
Description
| Specification | Details |
|---|---|
| Size (cm / inches) | 53 x 27 x 73 cm / 20.87 x 10.63 x 28.74 in |
| Weight (kg / lb) | Without shaft: 25 kg / 55.1 lb With shaft: 32 kg / 70.5 lb |
| Shaft Ø (mm / inches) | Ø8 / 0.31 Flexible Shaft with Outer Casing |
| Shaft Length (m / feet) | 19.5 / 64 |
| Rotating max. speed (rpm) | 2250 |
| Voltage and Power Rating (V/kW) | 240 V / 0.75 kW or 120 V / 0.75 kW |
| Input Power | Electric, 1-phase, 220-240VAC / 50-60Hz / 10A or Electric, 1-phase, 110-120VAC / 50-60Hz / 17A |
| IP Class | 54 |
| Diameter (mm / inches) | DN30–100 / 1.18–4 |
| Other Technical Information |
|
Shipping & Delivery
Related products
Milwaukee M18 Fuel Drain Cleaner – Power Feed (Kit)
- Milwaukee® designed and built brushless POWERSTATE™ motor: Delivers maximum power 10.6m down the line.
- REDLINK PLUS™ intelligence system: Provides advanced digital overload protection and enhances performance under load.
- REDLITHIUM-ION™ battery pack: Offers superior pack construction, electronics, and fade-free performance for longer run time and more work over pack life.
- CABLE-DRIVE locking feed system: Maintains selected feed speed and auto-adjusts to compatible cable sizes for optimal grip and clog removal.
- Fully enclosed drum: Ensures best-in-class protection and mess containment during operation.
- LED work light: Illuminates areas underneath sinks and other hard-to-see locations.
- Cross-brand compatibility: Accepts other brand cables.
- Flexible battery system: Works with all Milwaukee® M18™ batteries.
The Kit Includes:
- Milwaukee M12™ – M18™ Fast Charger
- Milwaukee M18B4 M18 4.0AH Red Lithium-Ion Battery
Milwaukee Cordless Professional Drain Cleaner
Lightest Cordless Professional Drain Cleaner on the Market
- REDLITHIUM-ION™ battery pack delivers up to 2x more run time, up to 20% more power, and up to 2x more battery life. Operates better down to -20°C than other lithium-ion technologies.
- Versatile design offers the benefits of both handheld and floor-based drain cleaners in one machine.
- Highly maneuverable and flexible due to cordless design, offering independence from electric power supply.
- Includes 8 mm spiral suitable for strong blockages in pipes up to 60 mm. Compatible with all standard ø 8 mm spirals.
- Robust drum shield protects the user and fixtures from the spinning drum.
- Easy-to-remove inner drum helps prevent spiral bind-up and contains dirt inside the drum.
- Quick cable lock mechanism enables manual feeding and releasing of the spiral.
- Integrated LED light illuminates the work area under sinks and in dark spaces.
- REDLINK™ overload protection electronics in tool and battery pack deliver best-in-class system durability.
Milwaukee Cordless professional drain cleaner (Kit)
Lightest Cordless professional drain cleaner on the market.
- Lightest Cordless professional drain cleaner on the market.
- REDLITHIUM-ION™ battery pack: Delivers up to 2x more run time, up to 20% more power, up to 2x more battery life and operates better down to -20°C than other lithium-ion technologies.
- Versatile Design: Provides benefits of both handheld and floor-based drain cleaners in one machine.
- User Flexibility: Best user flexibility and maneuverability due to the independence of electric power supply.
- Spiral Compatibility: Tool includes a tough 8 mm spiral for strong blockages in pipes up to 60 mm; also compatible with all standard ø 8 mm spirals.
- Safety & Cleanliness: Robust drum shield protects user & fixtures from spinning drum during use.
- Maintenance Friendly: Easy removable inner drum helps to prevent spiral bind up and contains dirt inside the drum.
- Quick Operation: Quick cable lock mechanism for manual feeding and releasing the spiral.
- Work Area Lighting: Integrated LED light illuminates work area underneath sinks and other dark spaces.
- System Protection: REDLINK™ overload protection electronics in tool and battery pack deliver best in class system durability.
Milwaukee M12B3 M12 3.0AH Red Lithium-Ion Battery
- Delivers up to 3x more run time and up to 2x more battery life compared with other Lithium-Ion technologies and/or with previous MILWAUKEE® battery technology (Results depend on tool and application).
- REDLITHIUM™ protection with REDLINK™ digital overload protection to prevent users from damaging their cordless power tool investment in abusive situations.
- Individual cell monitoring ensures optimal charge and discharge for maximum life.
- Integrated welded frame battery construction with shock responsive separators preventing pack failure from excessive vibrations or drops.
- Can be used in extreme temperatures down to -20 °C without compromising on runtime and battery life. Discharge protection prevents cell damage from over-discharge.
Milwaukee M18HB12 M18 12.0AH High Output Red Lithium-Ion Battery
- Battery Only – supplied WITHOUT tools or charger
- 50% More Power: The new M18™ 12.0 Ah HIGH OUTPUT™ battery pack provides up to 50% more power vs M18™ REDLITHIUM™-ION battery packs.
- Smart Protection: Patented REDLINK™ intelligence protects the pack from tough jobsite conditions to ensure optimum performance.
- Runs Cooler: Operates up to 50% cooler during heavy use, allowing users to push their cordless tools harder and longer.
- Replaces Corded Tools: Offers more run time than ever before, helping replace corded solutions on job sites.
- Extreme Durability: Durable metal frame construction with shock responsive separators to prevent pack failure from vibrations or drops.
- Fuel Gauge: On-board battery fuel gauge helps users optimise run-time efficiency.
- Max Battery Life: Individual cell monitoring ensures optimal charge and discharge for maximum battery life.
- Fully Compatible: Works with all M18™ tools in the Milwaukee® range.
- 2-Year Extended Warranty: Register online at warranty.milwaukeetool.eu for extended battery coverage.
- HIGH OUTPUT™ REDLITHIUM™-ION Battery Technology:
- New larger cell
- Higher power density
- Runs cooler
- Lower electrical resistance
- New high power processor
- Higher current handling
- Maintains compatibility with all M18™ tools
Chain Knockers (for 10mm & 12mm cable connections)
For the general cleaning process of pipes these are highly regarded as the go-to choice for most technicians.
Materials:
Stainless Steel Chains, Carbide Tips
Pipe Type:
Cast Iron, Concrete, Stainless Steel
- WS-2100-4 – 100–125mm, 10mm cable connection chain knocker
- WS-2150-4 – 125–150mm, 10mm cable connection chain knocker
- WS-3100-4 – 100–125mm, 12mm cable connection chain knocker
- WS-3150-4 – 125–150mm, 12mm cable connection chain knocker
Centering Axels and Cable Connectors
Centering Axels are used to centralize different Renssi® Tools to get the best result for your job. Suitable tools are for example RCD and RLC tools. Centering Axel has high quality ballbearings inside to make it rotate well. The cable connectors can connect centering axel or another cable to your cable.
Centering Axels
- RCA-050 – for 50mm pipe
- RCA-075 – for 75mm pipe
- RCA-100 – for 100mm pipe
- RCA-150 – for 150mm pipe
Cable Connectors
- CC-050 – for 50mm centering axel
- CC-100 – for 100mm centering axel
- CC-150 – for 150mm centering axel
