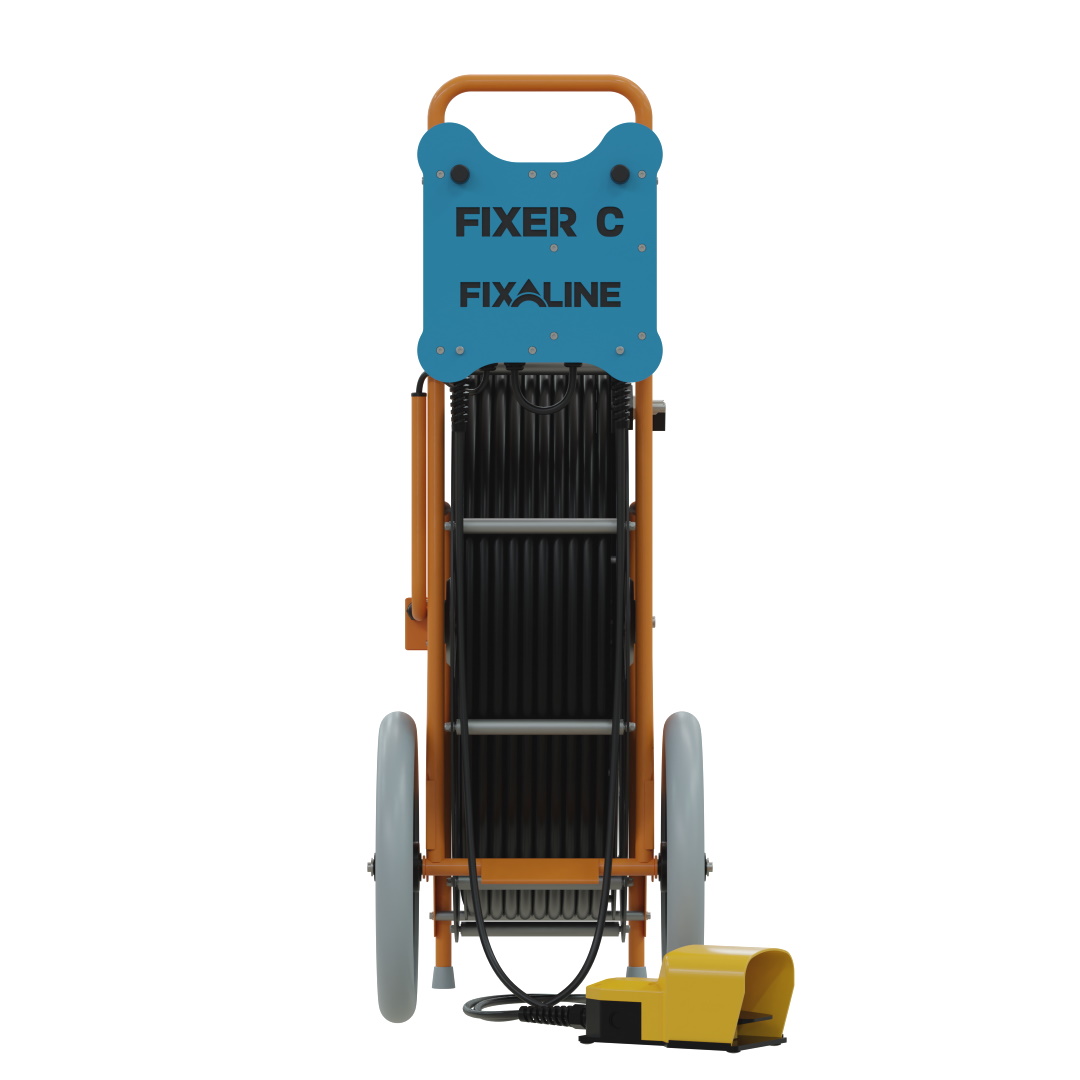

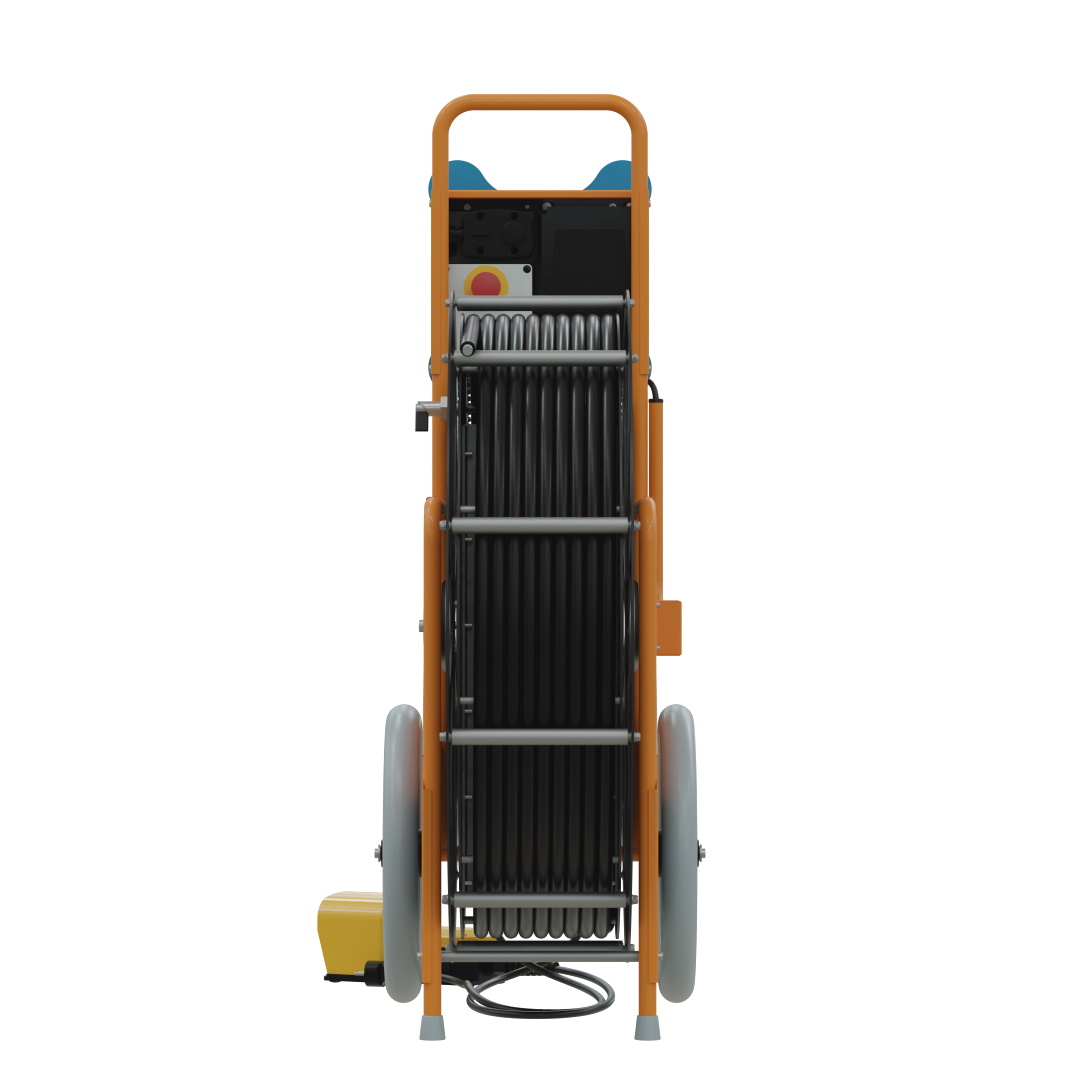

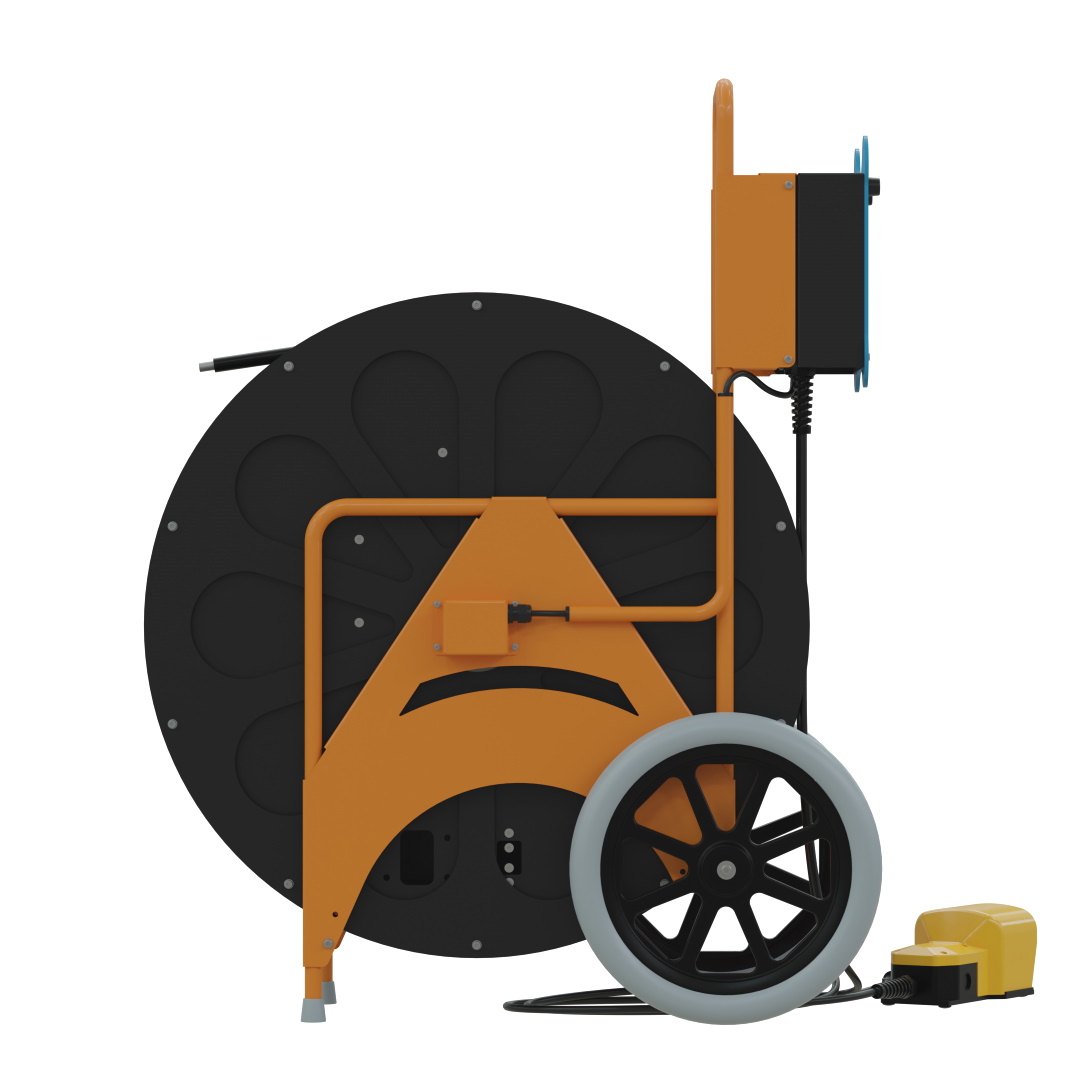

Fixaline FIXER COMBI

Company Logo
  • Adjustable speed control
  • Direction Switch
  • Foot Pedal (OPC)
  • Emergency Stop
  • Electronic Safety Switch
  • PU Foam Wheels, diameter 400mm
  • Robust steel frame
  • Drum lock
Description
Product Specification Table
Specification Details
Size (cm / inches) 122 x 45 x 95 cm / 48.03 x 17.72 x 37.40 in
Weight (kg / lb) Without shaft: 56.8 kg / 125.22 lb
With shaft: 78 kg / 172 lb
Shaft Ø (mm / inches)
Shaft Length (m / feet)
Ø12 / 0.47 Flexible Shaft with Outer Casing
25.5 / 83.66
Rotating max. speed (rpm) 2250
Voltage and power rating (V / kW) 240 V / 1.5 kW or 120 V / 1.5 kW
Input Power Electric, Input 110–120VAC / 50–60 Hz / 23 A
Input 220–240VAC / 50–60 Hz / 16 A
IP Class 54
Diameter (mm / inches) DN100–250 / 4–10
